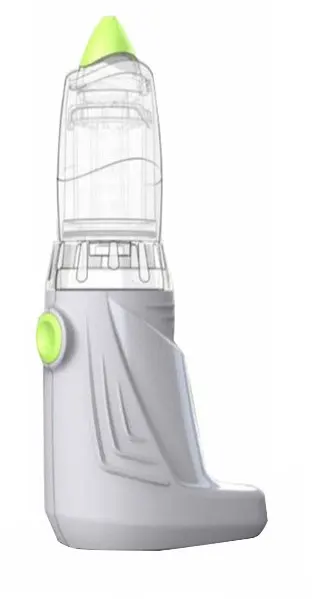

Rinowash ego - nasal shower

Product Description

Portable micronized nasal douche for aerosol therapy.

Indications

Rinowash Ego is composed of a base unit containing a pneumatic micro compressor and a rechargeable battery.
On the top is the medication tray with its nebulization bell.
It is operated via a rechargeable battery, and the charge level is indicated by 3 LEDs. This operation allows the liquid contained in the tray to be nebulized into the nasal cavities via an atomizer.
Excess liquid and nasal secretions are collected in a space between the two bells.
The device is a micronized nasal douche for aerosol therapy that allows the treatment of upper respiratory tract conditions and the physiological (with saline, hypertonic solution, or thermal water) and/or therapeutic (with drugs) washing of the nasal cavities.
The device produces a jet of micronized solution which, directed into the nasal cavities, promotes hydration, fluidification and removal of mucus and phlegm.

Composition

Base unit: ABS, NBR rubber and silicone body with an electric micromotor and a lithium polymer battery (RAEE) inside.
Upper part:

• medication tray: PC polycarbonate;
• atomizer: PC polycarbonate;
• external bell: polycarbonate + silicone;
• OR gasket: silicone.

Technical characteristics

Power supply: internal lithium polymer battery 3.7 V 1,650 mAh
Power supply: input 100-240 V, 50/60 Hz, 0.5 A; Output 5 V DC 2 A
Minimum filling volume: 3 ml
Maximum filling volume: 15 ml
Maximum compressor pressure: 1 bar
Maximum compressor flow: 5 lpm
Weight: 260 g
Dimensions: 210x60x100 mm
Noise level: 58 dbA
MMAD: 49 micron
Useful life of the device: 400 hours.

Instructions for use

Warning: The penetration of liquids inside the handpiece will result in damage to the electrical components and a safety hazard for the user.
Before proceeding with the operations indicated below, remove the accessories from the handpiece. To perform these operations, make sure that the power cord is not connected to the USB port on the device.
Base unit:

• Cleaning: Cannot be cleaned under water. Use a soft, damp cloth; a neutral, non-abrasive detergent can be used.
• Disinfection: Use a sponge or soft cloth moistened with a cold disinfectant solution (such as a solution with a sodium hypochlorite concentration not exceeding 2%), following the manufacturer's instructions. Check that the solution is compatible with the material the base unit is made of.
• Sterilization: There is no sterilization cycle.
  Upper part components:
• Cleaning: They can be washed with hot water (approx. 40°C) using detergent (dosed according to the detergent manufacturer's instructions) and rinsed under running water. Once all the parts have been cleaned, they can be dried with a soft cloth and stored.
• Disinfection: After being washed, they can be immersed in a cold disinfectant solution (such as a solution with a sodium hypochlorite concentration no higher than 2%), following the manufacturer's instructions. The accessories can be disinfected by boiling them in water for a maximum of 10 minutes: the components must not be in direct contact with the bottom of the pan.
• Sterilization: they are compatible with the autoclave sterilization cycle at 121°C for at least 15 minutes (max 30 minutes) for a maximum of 20 cycles.

Storage

Temperature: -20°C-+60°C.
Relative humidity: <85%.
Atmospheric pressure: 700-1,060 hPa.

Format

1 Rinowash Ego.
