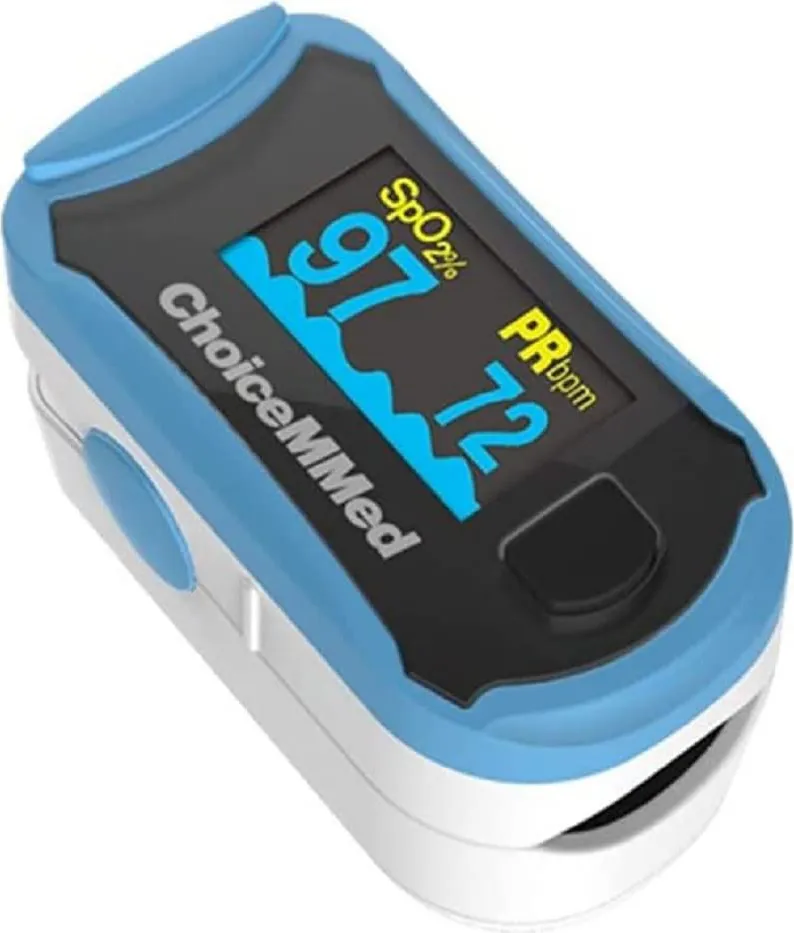

Md300c29 - portable pulse oximeter

Product Description

Medical device for measuring oxygen saturation.

Features

The MD300C29 Pulse Oximeter is a fingertip pulse oximeter, a portable, non-invasive device for the rapid measurement of arterial hemoglobin oxygen saturation (SpO) and heart rate in adults, adolescents, and children.

The device is not intended for continuous monitoring.

Operating functions

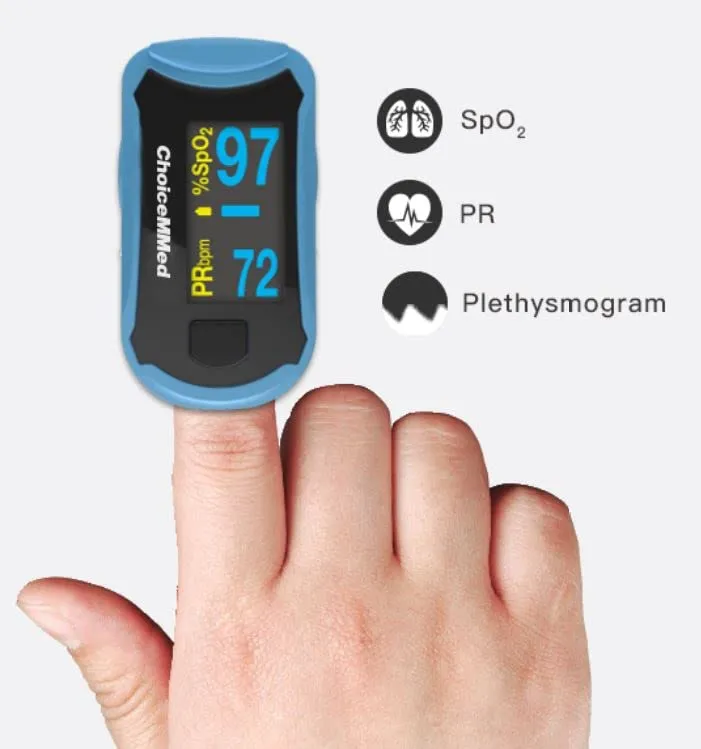

• OLED display for displaying SpO?, PR, pulse bar, and waveform
• Level 1-10, adjustable brightness
• 6 modes Display
• Low battery indicator
• Automatic shutdown after 8 seconds, indicated by the "Finger out" signal

Technical Specifications

• Display type: OLED;
• Power supply: two AAA alkaline batteries;
• Power consumption: less than 40 mA.

Spo2

• Measuring range: 70%-100%;
• Accuracy: 70%-100%: ±2%; 0%-69% no definition;
• Resolution: 1%.

Heart Rate

• Measuring Range: 30 bpm-250 bpm
• Accuracy: 30 bpm-99 bpm, ±2 bpm; 100bpm-250bpm, +2%
• Resolution: 1bpm

How to Use

1. Insert two AAA batteries into the battery compartment;
2. Insert your finger into the pulse oximeter;
3. Press the power button on the front once;
4. When the pulse oximeter is in use, avoid moving your finger and try to remain still;
5. Read the values ​​on the display according to the reading mode. (Pressing the power button for more than one second adjusts the brightness of the pulse oximeter. There are 10 brightness levels. The default is level 4.)
6. After turning on the pulse oximeter, each time you press the power switch, the pulse oximeter switches to another display mode (there are 6 display modes).

Included Accessories

• MD300C29 Pulse Oximeter;
• One wrist strap;
• Two AAA batteries;
• User manual in Italian, English, French, German, and Spanish.
