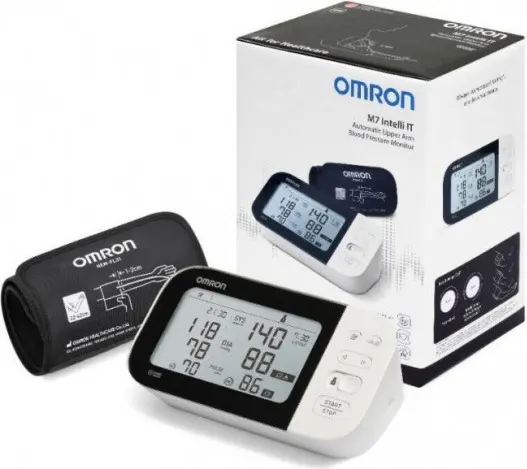

M7 intelli it - sphygmomanometer bracelet

Product Description

Automatic upper arm blood pressure monitor.

Indications

The M7 Intelli IT is a Bluetooth-enabled blood pressure monitor that detects the possibility of atrial fibrillation (AFib). It highlights potential atrial fibrillation (AFib), an often undetected condition that can lead to an increased risk of stroke and embolism.
Send results to your smartphone via Bluetooth and track your blood pressure readings with the OMRON connect app. The OMRON M7 Intelli IT features an indicator that informs you of the correct cuff placement.
It provides accurate blood pressure readings no matter where it is placed around the arm.
The OMRON M7 Intelli IT takes three consecutive blood pressure measurements at 30-second intervals and then displays the average for a more accurate indication of your blood pressure. correct blood pressure.

Technical Specifications

Automatic upper arm blood pressure monitor.
Digital LCD display.
Cuff pressure range: 0 to 299 mmHg.

Pulse measurement: 40 to 180 beats/min.

Blood pressure measurement:
- Systolic: 60 to 260 mmHg.
- Diastolic: 40 to 215 mmHg.

Pressure accuracy: ±3 mmHg.
Pulse accuracy: ±5% of the displayed value.

Device powered by 4 1.5V "AA" batteries or optional AC adapter. Using new alkaline batteries, approximately 1000 measurements can be taken. The number of times may be reduced when using the Afib mode, as a single Afib indication consists of 3 normal measurements.

Rated voltage: 6V DC 4.0W.

Stores up to 100 results per user.

Cuff circumference applicable to the monitor: 220 to 420 mm.

How to use

Oscillometric method. Continuous operation.
Wireless communication. Frequency range: 2.4 GHz (2400 - 2483.5 MHz) - Modulation: GFSK.
Effective radiated power: Operating conditions: 10°C to 40°C / 15 to 90% relative humidity (non-condensing) / 800 to 1060 hPa.

Storage

Store at -20°C to +60°C. Relative humidity 10 to 90%, non-condensing.
Shelf life: 5 years (monitor, cuff, optional AC power supply).

Package Contents

Box Contains:

• M7 Intelli IT Blood Pressure Monitor
• Intelli Wrap Cuff (22–42 cm)
• Instruction Manual 1 & 2
• Setup Instructions
• Batteries and Case

Dimensions:

• Monitor: 191 mm (width) x 85 mm (height) x 120 mm (length).
• Cuff: 145 mm x 532 mm (air tube: 750 mm).
