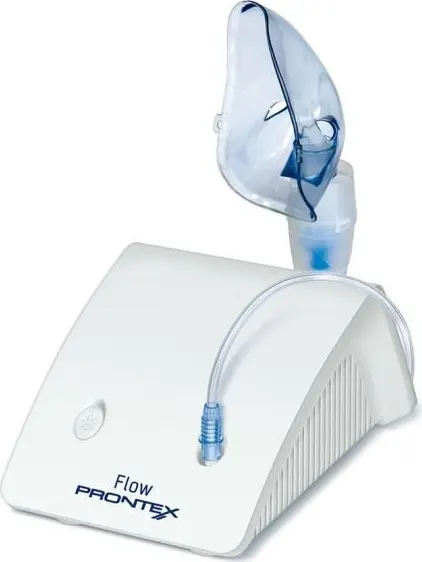

Flow - piston aerosol therapy device

Product Description

Aerosol therapy device indicated for the treatment of asthma, COPD, cystic fibrosis, sinusitis, allergic rhinitis, laryngitis, tracheitis, and bronchitis.

Indications

The Flow aerosol therapy device is an effective and versatile solution for the treatment of respiratory diseases. Its high-performance piston compressor guarantees uniform and powerful nebulization, with a respirable fraction of over 70%. This ensures greater treatment effectiveness, even in the most serious conditions. The device also features a modular design, making it easy to use and clean. The nebulizer head is interchangeable to adapt to different patient needs. The device is also indicated for the treatment of asthma, COPD, cystic fibrosis, sinusitis, allergic rhinitis, laryngitis, tracheitis and bronchitis.

Details

• Uniform and powerful nebulization delivery;
• Respirable fraction greater than 70%, for greater treatment effectiveness;
• Modular design, easy to use and clean;
• Interchangeable nebulizer head.

Technical data

• Compressor: Rotary piston;
• Maximum pressure: 300 kPa (3 Bar);
• Operating flow: 5.2 l/min at 130 kPa (1.30 Bar);
• Use cycle: Continuous use;
• Free flow: 16/l min;
• Noise level: '60 dBA (EN 23544-1);
• Particle diameter: 58 dBA (according to ENI 13544-1 regulation);
• Respirable fraction (Particles under 5 mm): >70%;
• Weight: 2kg;
• Dimensions: 205 x 140 x h 150 mm;
• Nebulizer bulb capacity: Min 2 ml max 6 ml;
• Nebulization: 0.5 ml/min (with 4 ml of solution).

How to use

• Preparation: Make sure you have all the components available: normal tube, ampoule, adult mask, pediatric mask, mouthpiece and nosepiece;
• Assembly: Connect the tube to the ampoule and attach the mouthpiece or mask, depending on the user's needs;
• Filling: Pour the liquid medication into the ampoule, following the doctor's instructions;
• Turning on: Connect the device to a power source and turn it on. The unit will begin dispensing the mist;
• Administration: Wear the mask or use the mouthpiece to breathe slowly and deeply until the medication is completely nebulized.

Format

The package contains:

• 1 normal tube with easy couplings;
• 1 ampoule;
• 1 adult mask;
• 1 pediatric mask;
• 1 mouthpiece;
• 1 nosepiece;
• 1 aerosol device.
